Fiber patch cords are pre-terminated with LC/UPC & LC/APC connector and have simplex and duplex, singlemode multimode & loopback options. The cable length is available by customers' request.We are also supply the SC/APC & SC/UPC connectors based on customer requested.
Application :
1. Access Network: FTTH/FTTB/CATV, xDSL
2. Enterprise Network: Data Center, POLS, Structured Cabling
3. Long-haul/Metro Loop Network: CO/POP
4. Wireless Network: Backhaul
Spec.
| 光纖傳輸性能: | |||
| 光纖型號 | OM3 50/125um | OM4 50/125um | OS2 9/125um |
| (850/1300nm) | (850/1300nm) | (1310/1550um) | |
| 最大衰減（dB/KM) | 2.5 / 0.7 | 2.5 / 0.7 | 0.36/ 0.22 |
| 最小EMB頻寬（MHz.KM) | 2000/- | 4700/- | / |
| 衰減變化量，7.5mm半徑，250um塗層光纖， 850nm | < 0.2dB | < 0.2dB | / |
| 衰減變化量，7.5mm半徑，250um塗層光纖， 1550nm | / | / | < 0.2dB |

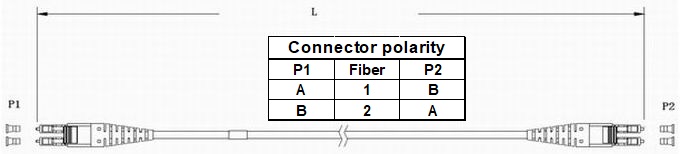

Drawing :

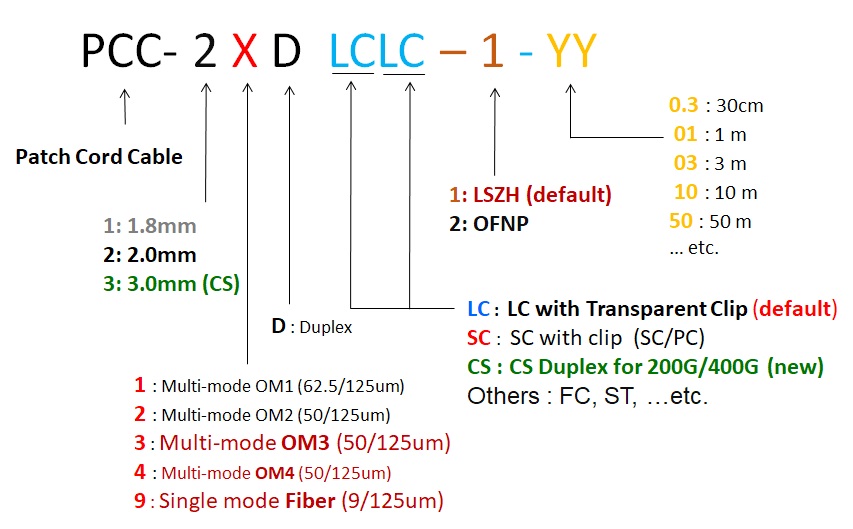

Ordering info :
.jpg)
.jpg)
